Transfer of Thermal Energy (Cambridge (CIE) IGCSE Physics)

Exam Questions

3 hours38 questions
1a2 marks

A Bunsen burner heats a beaker of water, as shown in Fig. 4.1.

BEbOezVl_q4a

(i) Fig. 4.2 shows the thermometer used in Fig. 4.1.

State the temperature shown on the thermometer.



q4ai



temperature = .................................................... °C [1]



(ii) The thermometer shown in Fig. 4.2 uses a physical property that changes with temperature.

Indicate the measurable property that changes with temperature. Tick one box.

square expansion of glass

square expansion of liquid

square colour of liquid

square colour of glass

[1]

1b1 mark

Thermal energy (heat) transfers through the bottom of the beaker to the water.

State the name given to this process.

1c4 marks

Thermal energy transfers throughout the water in the beaker.

Describe and explain how this happens.

Did this page help you?

2a5 marks

Fig. 6.1 shows a hot liquid in a vacuum flask. The vacuum flask keeps the temperature of the liquid in the flask constant for a long time.

q6

Describe how each feature helps to keep the liquid hot for longer.



(i) shiny silver surface

[2]

(ii) the vacuum between the silvered surfaces

[3]

2b2 marks

(i) Suggest a material for the stopper that will help to keep the liquid hot for longer.

[1]

(ii) Give a reason for your answer.

[1]

Did this page help you?

3a3 marks

Complete the sentences with words that describe the main process of energy transfer by heating in each case.

  A man goes for a walk on a cold day. He touches a metal gate, which removes energy from his hands by ................................. . He holds the sides of a cup containing a hot drink. His hands gain energy by ................................. . Some farm workers have lit a fire. The man warms his hands by the side of the fire. His hands gain energy by ................................. .

3b2 marks

Extended

Describe in terms of particles the transfer of energy from the thermal store of the man's hands through the metal of the gate.

3c2 marks

Fig. 5.1 shows a car on a sunny day in a hot country.



car

The object labelled A is placed inside the windscreen. It is used by the owner of the car to reduce the temperature rise of the air in the car.

Select the most suitable material for the outer surface of object A. Explain your choice.

dull black

dull white

shiny black

shiny white

Did this page help you?

4a6 marks

Fig. 6.1 is a diagram of the inside of an electric oven. The diagram shows a side view of the oven.



cie-2019-10

The heater is switched on.

(i) On Fig. 6.1, draw two arrows to show how thermal energy moves throughout the oven by convection.

[2]



(ii) Explain how thermal energy moves throughout the oven by convection. Use your ideas about density and expansion.

[3]



(iii) Use a word from the box to complete the sentence.

conduction  expansion   insulation  radiation

Thermal energy travels at the speed of light by .....................................

[1]

4b1 mark

The oven is in a kitchen that is fitted with a smoke detector.

Warm, moving air can carry smoke particles.

Suggest the best position for the smoke detector in the kitchen.

Did this page help you?

5a2 marks

Extended

A student is performing an experiment to investigate how much infrared radiation is radiated by different coloured surfaces.

Four conical flasks are painted shiny grey, dull drey, black and white, see Fig. 1.1.

2-3-5a-e

They fill the four conical flasks with boiling water and record the subsequent temperature every 30 s.

State the dependent and independent variables in this experiment.

5b2 marks

Extended

State two control variables in this investigation.

5c2 marks

Extended

The results of the experiment are plotted in Fig. 1.2 below. Each line represents the temperature loss of a different flask.

2-3-5c-e

Fig. 1.2

(i) State the letter of the curve with the lowest temperature change per second.

[1]



(ii) State the letter of the flask covered in the best conductor.

[1]

5d5 marks

Extended

(i) Draw four lines between the labels from Fig. 1.2 and the different flask colours.

screenshot-2023-02-02-at-10-55-57

[4]

(ii) Suggest why the temperature of flask D does not drop below 23 °C.

[1]

Did this page help you?

1a1 mark

Some materials are poor conductors of thermal energy (heat energy).

State the term that describes materials that are poor conductors of thermal energy.

1b1 mark

Some materials are good conductors of thermal energy.

Draw a ring around each material that is a good conductor of thermal energy.

air

aluminium

copper

 glass

 plastic

 water

1c3 marks

A student has two rods made of different materials. The rods are the same size.

Describe an experiment to identify which material is the better conductor of thermal energy.

You may draw a diagram in the space below.

Did this page help you?

2a3 marks

Extended

Fig. 4.1 shows a cold plastic spoon that has just been placed in hot liquid in a cup.

feb-march-2018-42-q4

Describe, in terms of molecules, why the temperature of the whole of the spoon increases.

2b2 marks

Extended

The plastic spoon is replaced by a metal spoon.

  Describe an additional process by which the temperature of the whole of this spoon increases.

2c3 marks

Extended

The cup contains 150 g of liquid of specific heat capacity 4.2 J / (g°C). When the cold spoon is placed into the hot liquid, the temperature of the liquid decreases from 80 °C to 56 °C.

Calculate the loss of thermal energy from the liquid.



energy loss = .........................................................

Did this page help you?

3a1 mark

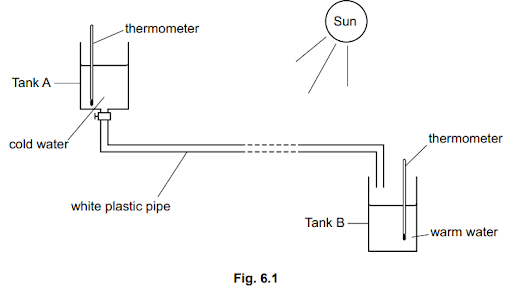

A student constructs a device for absorbing thermal energy from the Sun. Fig. 6.1 shows the device.

q6a



The student places the white plastic pipe in sunlight. The cold water flows slowly from Tank A to Tank B. Energy from the Sun heats the water in the pipe.

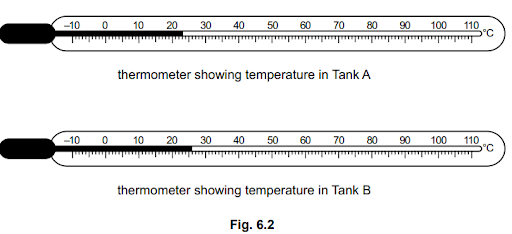

Fig. 6.2 shows the temperatures in Tank A and Tank B.



q6a2



Determine the rise in temperature of the water.



temperature rise = .................................................... °C

3b3 marks

The student wants to increase the thermal energy absorbed by the water in the pipe. Suggest three improvements he can make to increase the thermal energy absorbed.

3c2 marks

Describe how the thermal energy is transferred from the Sun to the water inside the pipe.

Did this page help you?

4a2 marks

A student investigates the thermal energy lost from two metal cans, X and Y. The cans are identical apart from their outside colour.

The student pours the same volume of hot water into each can and seals each can. The student records the temperature of the water in each can at regular time intervals for a period of 35 minutes.

The equipment is shown in Fig. 6.1.

q6a1

Fig. 6.2 is a graph of the results from the investigation.

k83dBYOC_q6a2

For can X, use Fig. 6.2 to determine the drop in temperature of the water



(i) in the first five minutes

[1]

(ii) in the last five minutes

[1]

4b2 marks

Explain why the water cools at a greater rate during the first five minutes of the experiment, compared with the last five minutes.

4c2 marks

The outside of one can is dull black and the outside of the other is shiny white.

State the colour of can Y.

Explain your answer.

Did this page help you?

5a1 mark

A student heats some water in a metal can, as shown in Fig. 6.2.

screenshot-2022-10-20-at-09-57-32

Complete the sentence. Choose a word from the box.

screenshot-2022-10-20-at-09-59-36

Thermal (heat) energy moves through the metal can by ............................................

5b3 marks

Describe how thermal energy is transferred throughout the water. Include your ideas about density changes.

Did this page help you?

1a1 mark

A thermometer is used to measure the temperature inside a room in a house.

State a physical property that varies with temperature and can be used in a thermometer.

1b3 marks

Fig.6.1 shows how the temperature of the room changes between 6:00 pm and 11:00 pm.

feb-march-2018-32-q6b



A heater in the room is switched on at 6 pm. The room has a large window. A large amount of thermal energy is transferred through the window. The window in the room has thick curtains.

                                   Closing the curtains reduces the loss of thermal energy from the room.

(i) Suggest the time at which the heater is switched off.

[1]



(ii) Suggest the time at which the curtains were closed and explain your answer. Use information from the graph.

[2]

1c3 marks

In cool climates, people use mineral wool to reduce heat loss from houses. Mineral wool is made of fibres and trapped air, as shown in Fig.6.2.

feb-march-2018-32-q6c

Use words from the box to complete the sentences. Each word may be used once, more than once, or not at all.

feb-march-2018-32-q6c2



Air is a good ............................................ .

  When air is trapped between fibres, it reduces heat loss by ..................................... and by ........................................ .

Did this page help you?

24 marks

Extended

A student wants to investigate good and bad absorbers of thermal radiation. She has the apparatus shown in Fig. 5.1, a supply of cold water and a metre rule.

agEqmhRp_q5

Explain how the student could use the apparatus she has available to carry out her investigation.

Describe the results she would expect to obtain. Draw a diagram of the set-up.

Did this page help you?

3a3 marks

A solar panel is mounted on the roof of a house. Fig. 1.1 shows a section through part of the solar panel.

2-3-3a-h

A pump makes water flow through the copper pipes. The water is heated by passing through the solar panel.

Select and explain three features of the solar panel that maximise the final temperature of the water.

3b5 marks

Extended

During one day, 250 kg of water is pumped through the solar panel. The temperature of this water rises from 16 °C to 38 °C.

The water absorbs 25% of the energy incident on the solar panel. The specific heat capacity of water is 4200 J/(kg °C)

Calculate the energy incident on the solar panel during that day.

3c4 marks

Extended

The heated water is stored in a sealed copper hot-water tank. During the day, the water cools as thermal energy (heat) passes from the water to the air surrounding the tank.

Name and describe the process by which the thermal energy is transferred from the hot water to the air.

3d5 marks

Extended

The manufacturer of the hot-water tank says that when the outside surface is polished regularly and kept bright and shiny, the hot water will cool more slowly.

Describe an experiment that shows whether a container with a bright and shiny surface is better at keeping its contents warm than one with a dull and dark surface.

Did this page help you?

4a3 marks

Extended



The apparatus shown in Fig. 1.1 is known as Leslie’s Differential Air Thermometer.

2-3-4a-h-leslie-differential

Fig. 1.1

The heater is switched off. Tap T is opened so that the air on the two sides of T has the same pressure. Tap T is then closed.

(i) The heater is switched on. On Fig. 1.1, mark clearly where the two liquid levels might be a short time later.

[1]

(ii) Explain your answer to (a)(i).

[2]

4b5 marks

A gym has a low initial temperature. A larger radiant heater is placed on the floor in the centre of a gym to heat the room. The room has no open windows or ventilation.

Describe and explain the subsequent motion of air in the gym, naming any processes.

4c6 marks

After a marathon in winter, the athlete has sweated a large amount.

(i) Explain why this could be dangerous.

[3]

(ii) Some athletes choose to wear a shiny foil blanket immediately after a race. Explain why.

[3]

4d4 marks

Extended

For the end of the marathon, the athlete's coach has a double-walled vacuum flask (Fig. 1.2), which is designed to maintain the temperature of its contents. It is partially filled with a hot liquid.

The lid is made of black plastic and sealed tight. The walls are silvered metal.

2-3-4d-h-vacuum-flask-physics

Eventually the liquid cools. Explain how thermal energy is transferred from the hot liquid through the lid over time.

Did this page help you?

5a3 marks

Extended

An object in the space between Earth and the Sun has an average temperature of 3 K.

(i) State how the intensity of radiation the object receives from the Sun at this point differs from the intensity at the Earth's surface.

[1]



(ii) Explain why the temperature of the object in space here is lower than if it was on Earth.

[2]

5b4 marks

Extended

The average surface temperature of Venus is 475 °C.

The average surface temperature of Earth is 13 °C.

If Venus had an atmosphere the same as Earth's, it would have a maximum surface temperature of 35 °C.

If Venus had an orbital radius the same as Earth's, it would have a surface temperature of 227 °C.

Venus is ~30% closer to the Sun that the Earth is.

Referring to these data, explain why the surface temperature of Venus is much higher than Earth's.

5c4 marks

The Earth's magnetic field arises from its iron-rich molten core, shown in Fig. 1.2.

Molten iron must be in motion to generate a magnetic field.

The inner core is very hot and solid. The outer core is also iron-rich and liquid.

2-3-5c-h

Explain the origin of the Earth's magnetic field, referring to density in your answer.

Did this page help you?

64 marks

A student is testing how different surfaces absorb radiant heat.

The student puts two metal plates in holders and places them on either side of a radiant heater as shown in Fig. 6.2. One plate has a shiny metal side facing towards the heater and the other plate has a dull black side facing towards the heater.

A metal disc is attached to each plate using wax.



lML7SMGy_cie-2020-31-9



(i) The student turns on the radiant heater and starts a stop-clock. The wax on the plate with a dull black side melts and the metal disc falls off the plate 53 seconds after the stop-clock is started.

 The metal disc on the plate with a shiny metal side remains attached for another 32 seconds after the metal disc on the first plate falls.

 Explain why the metal disc on the plate with a dull black side falls before the metal disc on the plate with a shiny metal side.

[2]



(ii) Another student observes the experiment shown in Fig. 6.2 and says that the comparison of the two plates is not fair.

Suggest why the experiment is not fair.

[2]

Did this page help you?
