1
Sme Calculator2 marks
cie-igcse-2020-oct-nov-p2-tz2-q15

Calculate the area of this sector of a circle.

 .......................................... cm2

How did you do?

Did this page help you?

2
Sme Calculator2 marks
cie-igcse-2019-may-jun-p2-tz3-q12

The diagram shows a sector of a circle with radius 6.2 cm and sector angle 217°.

Calculate the area of this sector.

............................................. cm2

How did you do?

Did this page help you?

3
Sme Calculator2 marks

Calculate the area of a circle with radius 5.1 cm.

......................................cm2

How did you do?

Did this page help you?

4
Sme Calculator2 marks

The diagram shows a sector of a circle of radius 4 cm.

q5-4-6-easy-edexcel-gcse-maths

Work out the length of the arc A B C.
Give your answer correct to 3 significant figures.

How did you do?

Did this page help you?

5
Sme Calculator2 marks

The diagram shows sector space O P Q spaceof a circle, centre O

q11-4ma1-1hr-qp-jan22-paper1-igcse-maths-1

O P space equals space O Q space equals space 7.1 space cm
Angle P O Q space equals space 110 degree

Calculate the area of sector O P Q
Give your answer correct to one decimal place.

How did you do?

Did this page help you?

6
Sme Calculator3 marks
cie-igcse-2020-may-june-p4-tz1-q9a

The diagram shows a sector of a circle with centre O, radius 8 cm and sector angle 165°.

Calculate the total perimeter of the sector.

............................................ cm

How did you do?

Did this page help you?

7
Sme Calculator3 marks
cie-igcse-2019-may-jun-p4-tz1-q5a

The diagram shows the surface of a garden pond, made from a rectangle and two semicircles.
The rectangle measures 3 m by 1.2 m.

Calculate the area of this surface.

...............................................m2

How did you do?

Did this page help you?

8a
Sme Calculator7 marks
cie-igcse-2018-oct-nov-p4-tz2-q10aiii

The cross-section of a gate is a sector of a circle with radius 8.5 m and angle 76°.

Calculate the perimeter of the sector.

............................................ m

How did you do?

8b
Sme Calculator6 marks
cie-igcse-2018-oct-nov-p4-tz2-q10b

A solid metal cone has radius 10 cm and height 36 cm.

i) Calculate the volume of this cone. [The volume, V, of a cone with radius r and height h is  V equals 1 third straight pi r squared h.]



......................................... cm3[2]

ii) The cone is cut, parallel to its base, to give a smaller cone.

cie-igcse-2018-oct-nov-p4-tz2-q10bii

The volume of the smaller cone is half the volume of the original cone.
The smaller cone is melted down to make two different spheres.
The ratio of the radii of these two spheres is 1 : 2.

Calculate the radius of the smaller sphere.
[The volume, V, of a sphere with radius r is  V equals 4 over 3 straight pi r cubed.]





.......................................... cm [4]

How did you do?

Did this page help you?

9
Sme Calculator4 marks

The diagram shows the top of Levi's birthday cake.

q10-4-6-easy-edexcel-gcse-maths

The top of the cake is in the shape of a circle.
The diameter of the circle is 7 inches.

A ribbon is going to be put around the side of the cake. Ribbons are sold in 50 cm lengths.

1 inch is 2.54 cm.

Work out if one length of ribbon is long enough to go all the way around the cake.
You must show your working.

How did you do?

Did this page help you?

10
Sme Calculator4 marks

O A B is a sector of a circle with centre O and radius 7 cm.

bV5GMp8X_q6-4-6-medium-edexcel-gcse-maths

The area of the sector is 40 cm2.

Calculate the perimeter of the sector.
Give your answer correct to 3 significant figures.

How did you do?

Did this page help you?

11
Sme Calculator4 marks

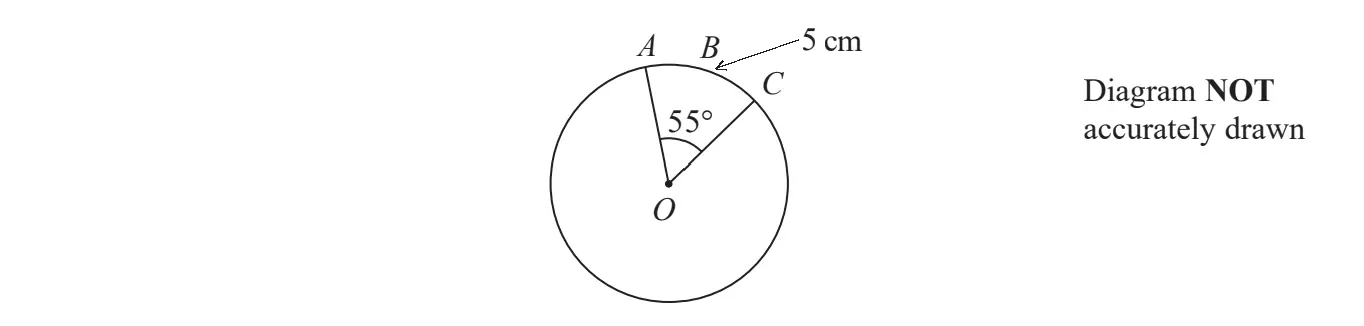

The diagram shows a circle with centre O

q16-january-2022-1h-edexcel-igcse-maths

A comma space B and space C spaceare points on the circle so that the length of the arc A B C is 5 cm.

Given that angle A O C = 55°

work out the area of the circle.
Give your answer correct to one decimal place.

How did you do?

Did this page help you?

12
Sme Calculator3 marks

The diagram shows Yuen’s garden.

q5-4ma1-1hr-qp-jan20-paper1-igcse-maths

The garden is in the shape of a semicircle of radius 7.2 straight m. Yuen is going to cover his garden with grass seed.

Yuen has 12 boxes of grass seed.
Each box of grass seed contains enough seed to cover 6 straight m squared of the garden.

Has Yuen enough grass seed for his garden?
Show your working clearly.

How did you do?

Did this page help you?

1
Sme Calculator3 marks

Calculate the area of the sector of a circle with radius 65 mm and sector angle 42°.
Give your answer in square centimetres.

................................................ cm2

How did you do?

Did this page help you?

2
Sme Calculator3 marks
q12-4-6-medium-edexcel-gcse-maths

The arc A B C is a quarter of a circle with centre O and radius 4.8 cm.
A C is a chord of the circle.

Work out the area of the shaded segment.
Give your answer correct to 3 significant figures.

How did you do?

Did this page help you?

3
Sme Calculator3 marks
q13-4-6-medium-edexcel-gcse-maths

O A B is a sector of a circle, centre O.
O C D is a sector of a circle, centre O.
O C A and O D B are straight lines.

Angle A O B space equals space 75 degree
O D space equals space 6 space cm space D B space equals space 4 space cm

Calculate the perimeter of the shaded region.
Give your answer correct to 3 significant figures.

How did you do?

Did this page help you?

4
Sme Calculator5 marks
q9-4-6-medium-edexcel-gcse-maths

O N Q is a sector of a circle with centre O and radius 11 cm.

A is the point on O N and B is the point on O Q such that A O B is an equilateral triangle of side 7 cm.

Calculate the area of the shaded region as a percentage of the area of the sector O N Q.
Give your answer correct to 1 decimal place.

How did you do?

Did this page help you?

5
Sme Calculator5 marks

The diagram shows a shaded shape space A B C D spacemade from a semicircle space A B C spaceand a right-angled triangle A C D.

q11-4ma1-2h-qp-jan20-paper2-igcse-maths

A C spaceis the diameter of the semicircle A B C.

Work out the perimeter of the shaded shape.
Give your answer correct to 3 significant figures.

....................cm

How did you do?

Did this page help you?

6
Sme Calculator3 marks
cie-igcse-2020-oct-nov-p4-tz1-q4d

The diagram shows a square with side length 8 cm and a sector of a circle with radius 9.5 cm and sector angle x°. The perimeter of the square is equal to the perimeter of the sector.

Calculate the value of x.

x space equals ................................................

How did you do?

Did this page help you?

7
Sme Calculator9 marks
cie-igcse-2019-oct-nov-p4-tz3-q6a

104In the diagram, A, B, C and D lie on the circle, centre O.

Angle ADC = 128°, angle ACD = 28° and angle BCO = 30°. Angle AOC = 104°.

The radius, OC, of the circle is 9.6 cm.

Calculate the total perimeter of the sector OADC.

.............................................. cm

How did you do?

Did this page help you?

8
Sme Calculator4 marks
cie-igcse-2019-may-jun-p4-tz2-q8b

The diagram shows a sector of a circle of radius 3.8 space text cm end text. The arc length is 7.7 space text cm end text.

i) Calculate the value of y.

y = .............................................. [2]

ii) Calculate the area of the sector.

........................................ cm2 [2]

How did you do?

Did this page help you?

9a
Sme Calculator5 marks
cie-igcse-2018-may-jun-1-8c

P, Q and R are points on the circumference of the circle, centre O.
PO is parallel to QR and angle POQ = 48°.

Find angle OPR.

Angle OPR = ...............................................

How did you do?

9b
Sme Calculator5 marks

The radius of the circle is 5.4 cm.
Calculate the length of the major arc PQ.

.......................................... cm

How did you do?

Did this page help you?

10
Sme Calculator5 marks

The diagram shows a plan of Brian's lawn.

q7-4-6-medium-edexcel-gcse-maths

The edge of the lawn consists of two semicircles and two straight lines.
Each semicircle has centre O.
The diameters of the semicircles are 9 m and 5 m.

Brian is going to put lawn edging around the edge of the lawn.
Lawn edging is sold in 2.4 metre rolls.

Brian has £35

Lawn edging

£3.99 per roll

or

3 rolls for £10

Has Brian got enough money to buy all the rolls of lawn edging he needs?

You must show all your working.

How did you do?

Did this page help you?

11
Sme Calculator4 marks

Saphia is organising a conference.

People at the conference will sit at circular tables.

q8-4-6-medium-edexcel-gcse-maths

Each table has a diameter of 140 cm.
Each person needs 60 cm around the circumference of the table.

There are 12 of these tables in the conference room.
A total of 90 people will be at the conference.

Are there enough tables in the conference room?

How did you do?

Did this page help you?

12
Sme Calculator5 marks
q14-4-6-medium-edexcel-gcse-maths

A comma space B and C are points on a circle of radius 5 cm, centre O.

D A and D C are tangents to the circle.
D O space equals space 9 space cm

Work out the length of arc A B C.
Give your answer correct to 3 significant figures.

How did you do?

Did this page help you?

1
Sme Calculator4 marks
cie-igcse-2020-mary-jun-p2-tz2-q24

The diagram shows a sector of a circle of radius 8 cm. The length of the arc P Q is 6.4 cm.

Find the area of the sector.

.......................................... cm2

How did you do?

Did this page help you?

2
Sme Calculator3 marks

The total perimeter of a semicircle is 19.02 cm.

Calculate the radius of the semicircle.

................................................ cm

How did you do?

Did this page help you?

3
Sme Calculator8 marks
cie-igcse-2019-oct-nov-p4-tz2-q8b

A and B lie on a circle, centre O.

Calculate the length of the arc A B.

How did you do?

Did this page help you?

4a
Sme Calculator5 marks
cie-igcse-2019-march-p4-q6

The diagram shows a company logo made from a rectangle and a major sector of a circle.

The circle has centre O and radius OA.

OA = OD = 0.5 cm and AB = 1.5 cm.

E is a point on OC such that OE = 0.25 cm and angle OED = 90°.

Calculate the perimeter of the logo.

............................................. cm

How did you do?

4b
Sme Calculator3 marks

Calculate the area of the logo.

............................................ cm2

How did you do?

Did this page help you?

5a
Sme Calculator5 marks
h0KYsqUX_cie-igcse-2018-oct-nov-p4-tz1-q10a

The diagram shows a circle, centre O.

The straight line ABC is a tangent to the circle at B.

OB = 8 cm, AB = 15 cm and BC = 22.4 cm.

AO crosses the circle at X and OC crosses the circle at Y.   Calculate angle XOY.

Angle XOY = ...............................................

How did you do?

5b
Sme Calculator2 marks

Calculate the length of the arc XBY.

.......................................... cm

How did you do?

5c
Sme Calculator4 marks

Calculate the total area of the two shaded regions.

........................................ cm2

How did you do?

Did this page help you?

6a
Sme Calculator4 marks
cie-igcse-2018-may-jun-2-p4-q5

The diagram shows a design made from a triangle AOC joined to a sector OCB.

AC = 8cm, OB = OC = 7 cm and angle ACO = 78°.

Use the cosine rule to show that OA = 9.47 cm, correct to 2 decimal places.

How did you do?

6b
Sme Calculator3 marks

Calculate angle OAC.

Angle OAC = ................................................

How did you do?

6c
Sme Calculator5 marks

The perimeter of the design is 29.5 cm.

Show that angle COB = 41.2°, correct to 1 decimal place.

How did you do?

6d
Sme Calculator4 marks

Calculate the total area of the design.

......................................... cm2

How did you do?

Did this page help you?
