The Water Cycle & Drainage Basin System (Edexcel IGCSE Geography)

Exam Questions

33 mins12 questions
1a1 mark

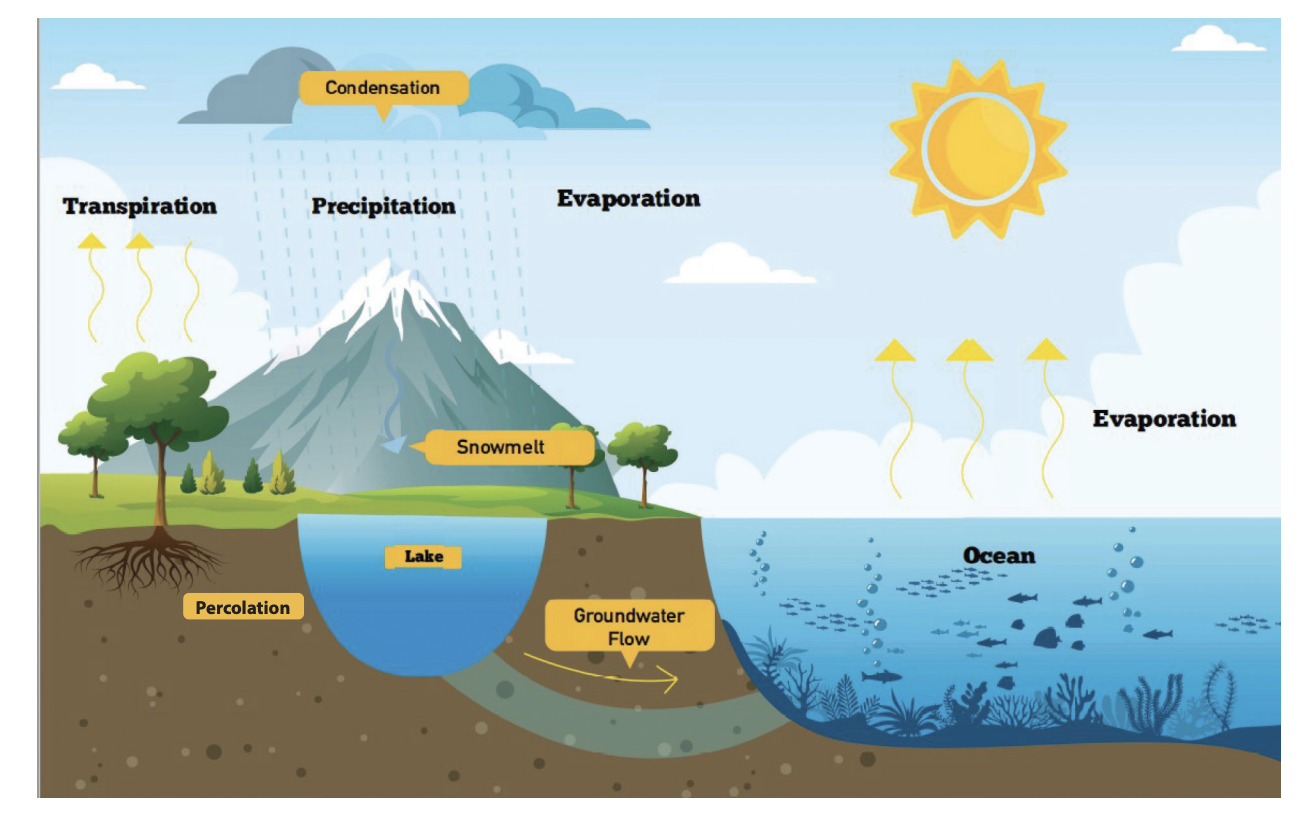

State one store in the hydrological cycle.

1b1 mark

Identify the meaning of the term river regime

  • variation in river discharge throughout the year

  • variation in river discharge over a day

  • variation in river discharge over a month

  • variation in river discharge throughout the week

Did this page help you?

2a2 marks

Explain one method of water transfer in the hydrological cycle.

2b1 mark

Identify the definition of the hydrological cycle

  • an open system made up of stores and transfers

  • a closed system made up of only stores

  • a closed system made up of stores and transfers

  • an open system made up of only transfers

Did this page help you?

3a1 mark

Identify the meaning of the term river discharge

  • the average speed of water in a river at one place at any one time

  • the volume of water in a river at one place at any one time

  • the average depth of a river at one place

  • the average width of a river at one place

3b1 mark

State one feature of a drainage basin.

Did this page help you?

4a1 mark

Identify the meaning of the term drainage basin

  • an area of land where water is stored

  • an area of land where water levels vary

  • an area of land where flooding occurs

  • an area of land drained by a river

4b2 marks

Explain the term lag time

Did this page help you?

51 mark

State one physical factor that affects river discharge.

Did this page help you?

6a1 mark

Identify one transfer in the hydrological cycle

  • Groundwater

  • Infiltration

  • Interception

  • Lake

6b1 mark

Identify the statement that best defines evapotranspiration

  • Loss of water from the ground from water stores and plants

  • Movement of water through the soil

  • Loss of water from the atmosphere into other stores

  • Movement of water over the ground into other stores

Did this page help you?

7a1 mark

Identify the best definition of a watershed

  • A boundary of a drainage basin

  • Bend in a river

  • Where a river meets the sea

  • Where two rivers meet

7b1 mark

Identify the best definition of a river mouth

  • Bend in a river

  • Starting point of a river

  • Where two rivers meet

  • Where a river meets the sea

Did this page help you?

8a1 mark

State one transfer of the hydrological cycle

8b1 mark

State one store in the hydrological cycle

Did this page help you?

91 mark

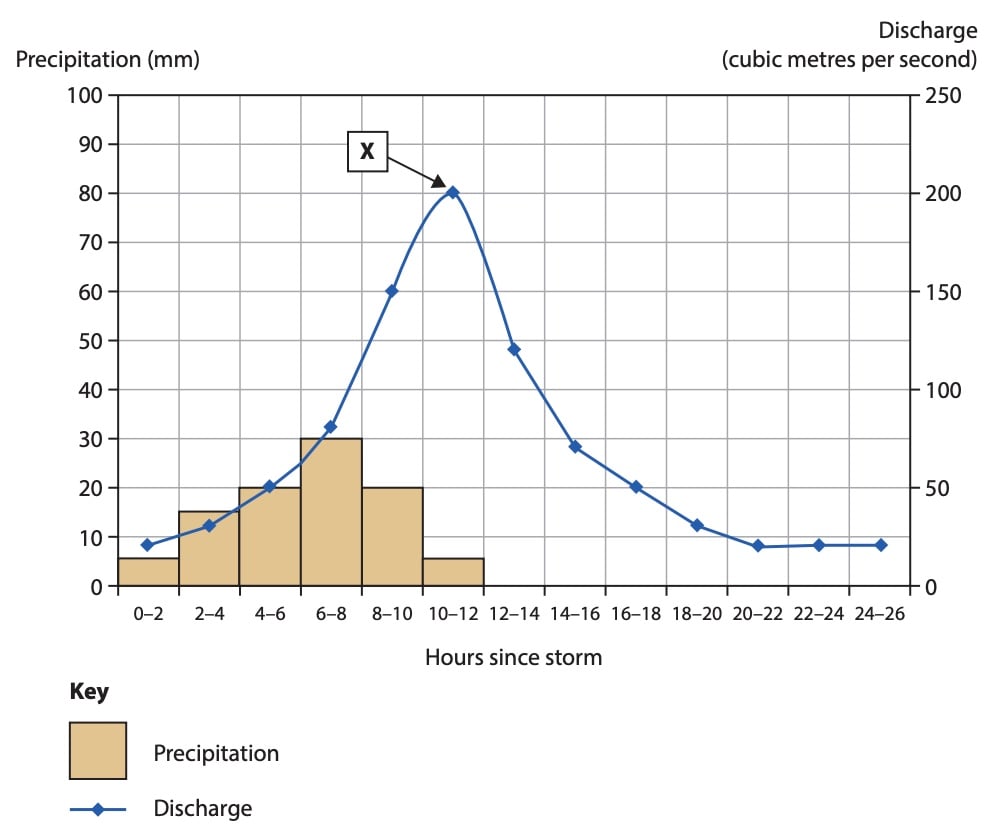

Study Figure 1b below

Identify the feature of the storm hydrograph labelled X

screenshot-2023-08-14-at-17-35-45

Did this page help you?

14 marks

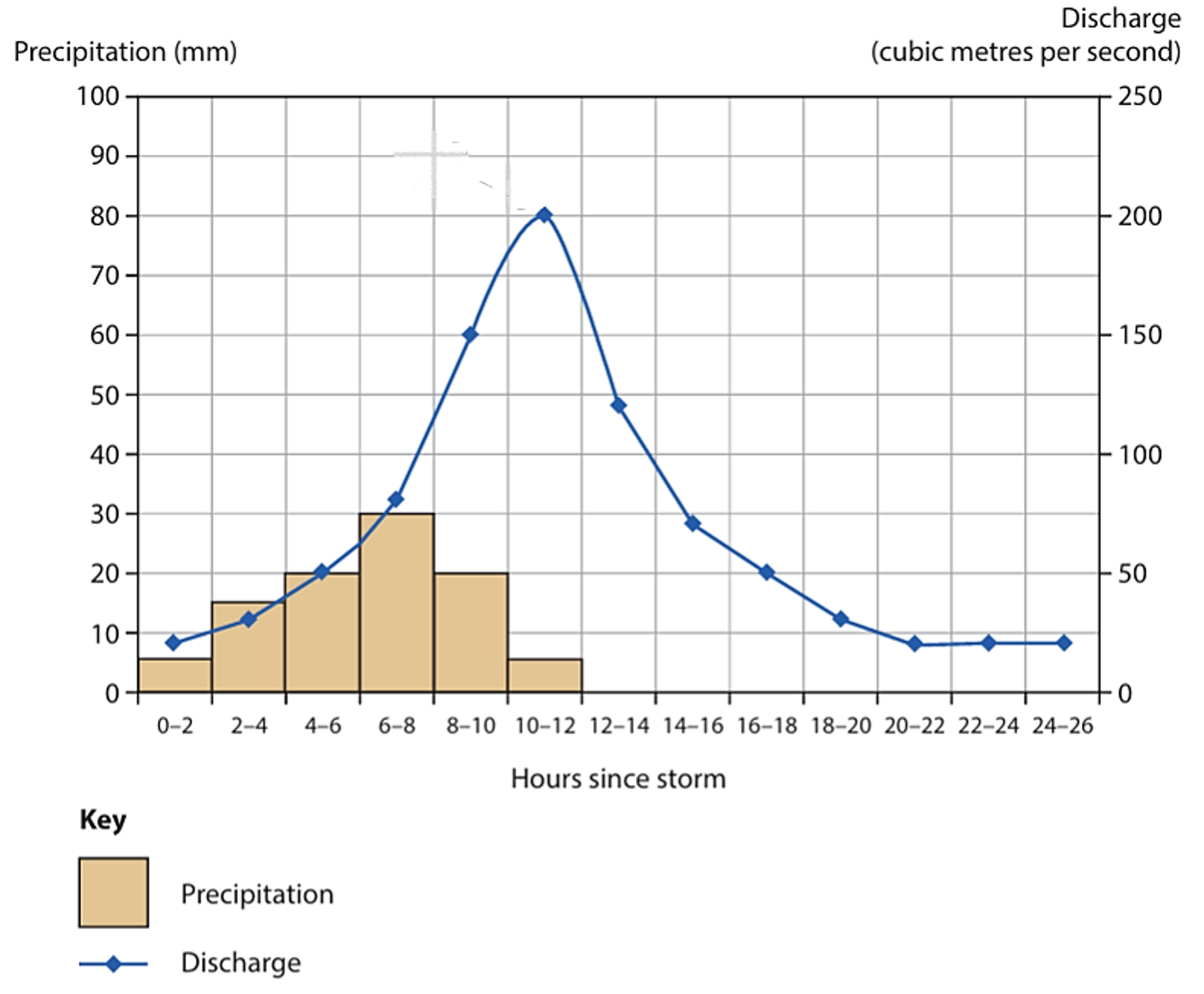

Study Figure 1a which shows two storm hydrographs

screenshot-2023-07-10-at-16-29-54

Suggest two physical factors that affect the differences in lag time

Did this page help you?

23 marks

Explain how urban land use can affect river regimes

Did this page help you?

18 marks

Study Figure 1c below

Analyse the factors that affect the river regime shown in figure 1c

screenshot-2023-08-15-at-10-11-53

Did this page help you?
