Elements of Break-even Charts

  • A break-even chart is a visual representation of the break-even point in a graph

  • Three lines are plotted on a graph with an x-axis labelled units and a y axis labelled costs/revenues

    • Fixed costs

    • Total costs

    • Revenue

  • The break-even point is the output level at which the revenue and total costs line cross

  • The break-even chart can also be used to identify the following

    • Profit or loss at different levels of output

      • Profit is achieved when revenue is greater than total costs

      • A loss occurs when total costs are greater than revenue

    • The margin of safety, which is the difference between the actual level of output and the break-even point

Interpreting Break-even Charts

  • The elements can be identified in the break-even chart below

    • The selling price is £32 per unit

    • Variable costs are £7.60 per unit

    • Fixed costs are £8,000

Diagram: Break-even Chart with Key Elements


2-2-3-interpretation-of-break-even-charts

The break-even chart shows the break-even point, profit at a given level of output and the margin of safety

Diagram analysis

  • Fixed costs do not change as output increases

    • Fixed costs are £8,000 and these do not change whether the business produces 0 units or 500 units

    • It is therefore represented by a horizontal line at £8,000 for all levels of output


  • Total costs are made up of fixed and variable costs

Fixed, Variable and Total Costs at Different Levels of Output

Units

0

100

200

300

400

500


Variable costs (£)


0


760


1,520


2,280


3,040


3,800


Fixed costs (£)


8,000


8,000


8,000


8,000


8,000


8,000


Total costs (£)


8,000


8,760


9,520


10,280


11,040


11,800



  • At 0 units of output, total costs are made up exclusively of fixed costs

  • At 500 units, the total costs are £11,800

Total space Variable space Costs space equals space Units space cross times space Variable space Cost space per space Unit

equals space 500 space cross times space £ 7.60

equals space £ 3 comma 800

Total space Costs space equals space Fixed space Costs space plus space Total space Variable space Costs

equals space £ 8 comma 000 space plus space £ 3 comma 800

equals space £ 11 comma 800

  • In the chart, the total costs line slopes upwards because total variable costs increase as output increases


  • Revenue is the quantity sold x selling price

Revenue at Different Levels of Output

Units

0

100

200

300

400

500


Revenue (£)


0


3,200


6,400


9,600


12,800


16,000

  • The revenue line also slopes upwards

    • At 0 units of output, the revenue is £0

    • At 500 units the total revenue equates to £16,000

    • Revenue increases with output

    • The line will slope more steeply than the total costs and will cross the total costs line at some point


  • The point at which the total costs and the revenue lines cross is the break-even point

    • The break-even level of output is 328 units

  • The margin of safety can be identified as the difference on the x-axis between the actual level of output (in this case, 450 units) and the break-even point

    • The margin of safety is 450 - 328 = 122 units

  • The profit made at a specific level of output can be identified as the space between the revenue and total costs lines

    • In this instance, the profit made at 450 units of output is £14,400 - £11,420 = £2,980

Examiner Tips and Tricks

You will not be required to draw a break-even chart in the exam but you could be asked to manipulate a diagram that has been provided

You could be asked to

  • Illustrate a change to the selling price, variable costs or fixed costs on the diagram

  • Mark the break-even point or margin of safety

  • Identify the amount of profit (or loss) made at a given level of output

  • Label elements such as axis names or cost/revenue curves

The Impact of Changes in Revenue & Costs

  • Changing in the selling price, variable cost per unit or total fixed costs affects the break-even point and level of profit or loss


How the Break-even Point & Level of Profit is Affected by Changes in Variables

Increased Selling Price

Decreased Selling Price

  • An increase in the selling price reduces the break-even point

hAn increase in the selling price means that fewer units need to be sold to breakeven



  • An increase in the selling price increases revenue at each level of output, from R1 to R2

  • The Break-even Point falls from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is increased

  • A decrease in the selling price increases the break-even point

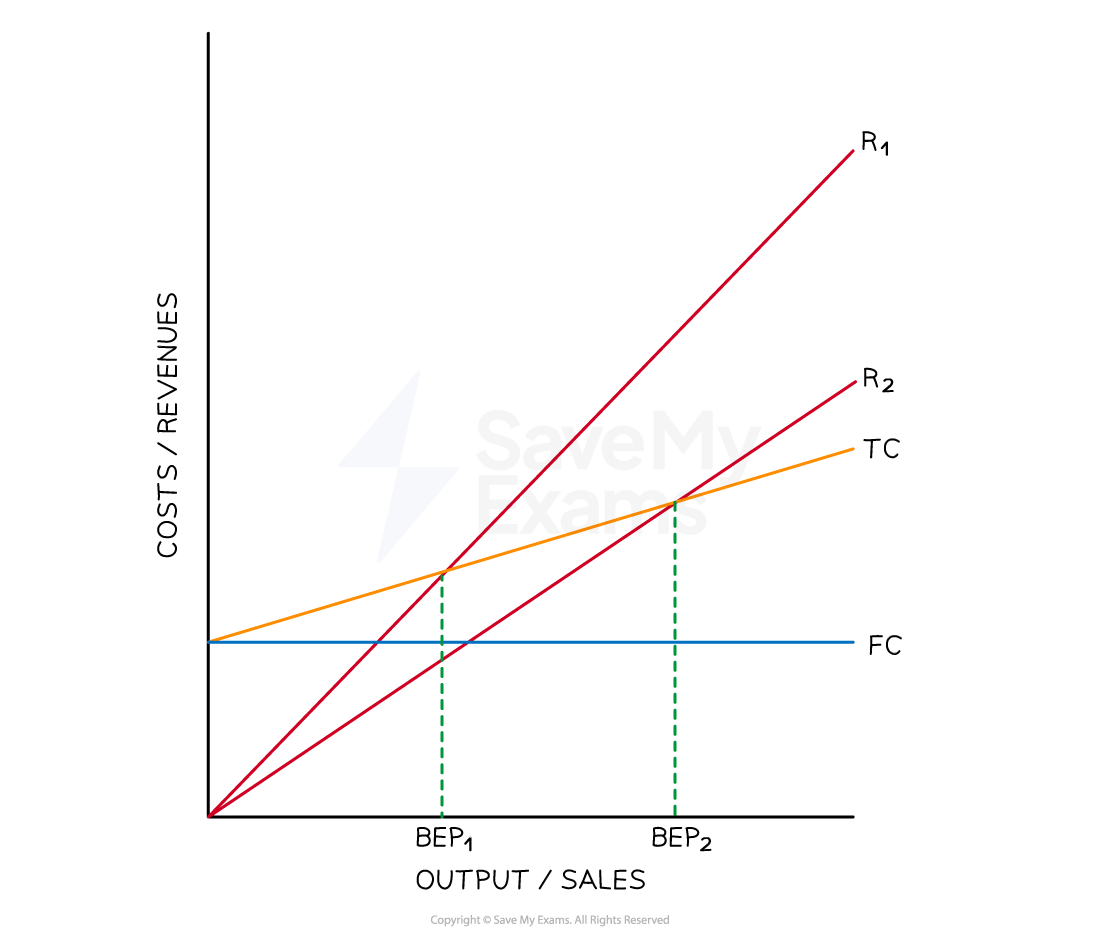

A decrease in the selling price means that more units have to be sold for the firm to breakeven



  • A decrease in the selling price reduces revenue at each level of output, from R1 to R2

  • The Break-even Point rises from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is decreased

Increased Variable Costs

Decreased Variable Costs

  • An increase in variable costs increases the break-even point

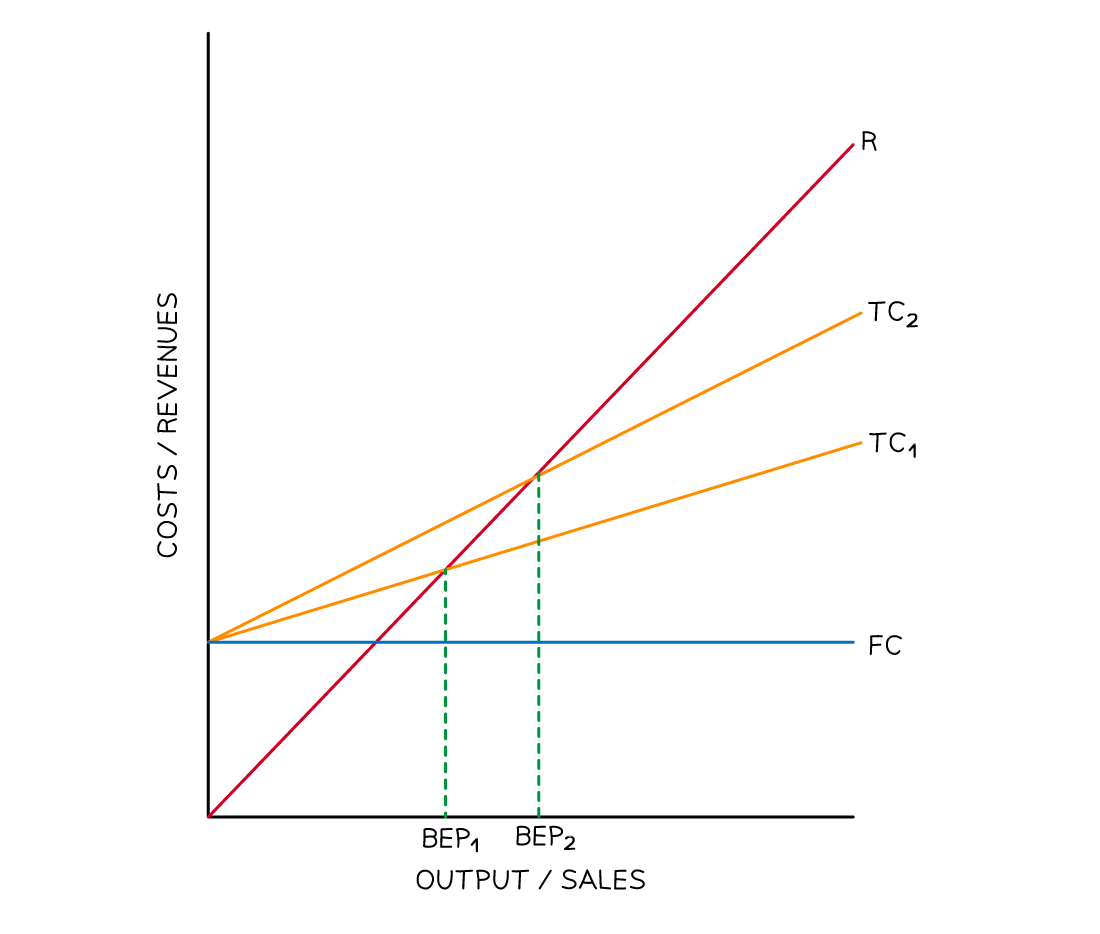

An increase in variable costs increases the breakeven point of a firm



  • An increase in variable costs increases total costs at each level of output, from TC1 to TC2

  • The Break-even Point increases from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is decreased

  • A decrease in variable costs decreases the break-even point

A decrease in variable costs lowers the breakeven point of a firm



  • A decrease in variable costs decreases total costs at each level of output, from TC1 to TC2

  • The Break-even Point falls from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is increased

Increased Fixed Costs

Decreased Fixed Costs


  • An increase in fixed costs increases the break-even point

An increase in fixed costs raises the number of units a firm needs to sell in order to breakeven
  • An increase in fixed costs increases total costs at each level of output, from TC1 to TC2

  • The Break-even Point increases from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is decreased


  • A decrease in fixed costs decreases the break-even point

A decreased level of fixed costs means that the firm has to sell fewer units in order to breakeven
  • A decrease in fixed costs reduces total costs at each level of output, from TC1 to TC2

  • The Break-even Point falls from BEP1 to BEP2

  • Profit on each unit of output greater than the break-even point is increased

Limitations of Break-even Charts

  • Whilst they provide an accessible way to understand costs, revenues and break-even there are some limitations of using break-even charts to support decision making

1. Costs do not always increase in direct proportion to units sold

  • Businesses may be able to negotiate bulk-buying discounts that reduce variable costs per unit at high levels of output

  • Fixed costs could increase significantly at higher levels of output as more staff or equipment may be required

2. Revenue does not always increase in direct proportion to units sold

  • Buyers may demand discounts for placing large orders, which will reduce the selling price per unit

3. Cost data is often an estimate

  • If break-even charts are used for forecasting, future cost estimates are used

  • The reliability of these estimates depends on the skills and experience of buyers and financial planners

4. Some output may remain unsold

  • The model assumes that all units produced are sold

  • In reality, businesses keep some stock as a buffer to meet demand at a later date

  • Unsold stock may be sold at a lower price to reduce storage costs or raise cash
