Statistical Diagrams (Edexcel GCSE Maths: Higher)

The frequency table gives information about the numbers of emails sent by teachers on Monday.

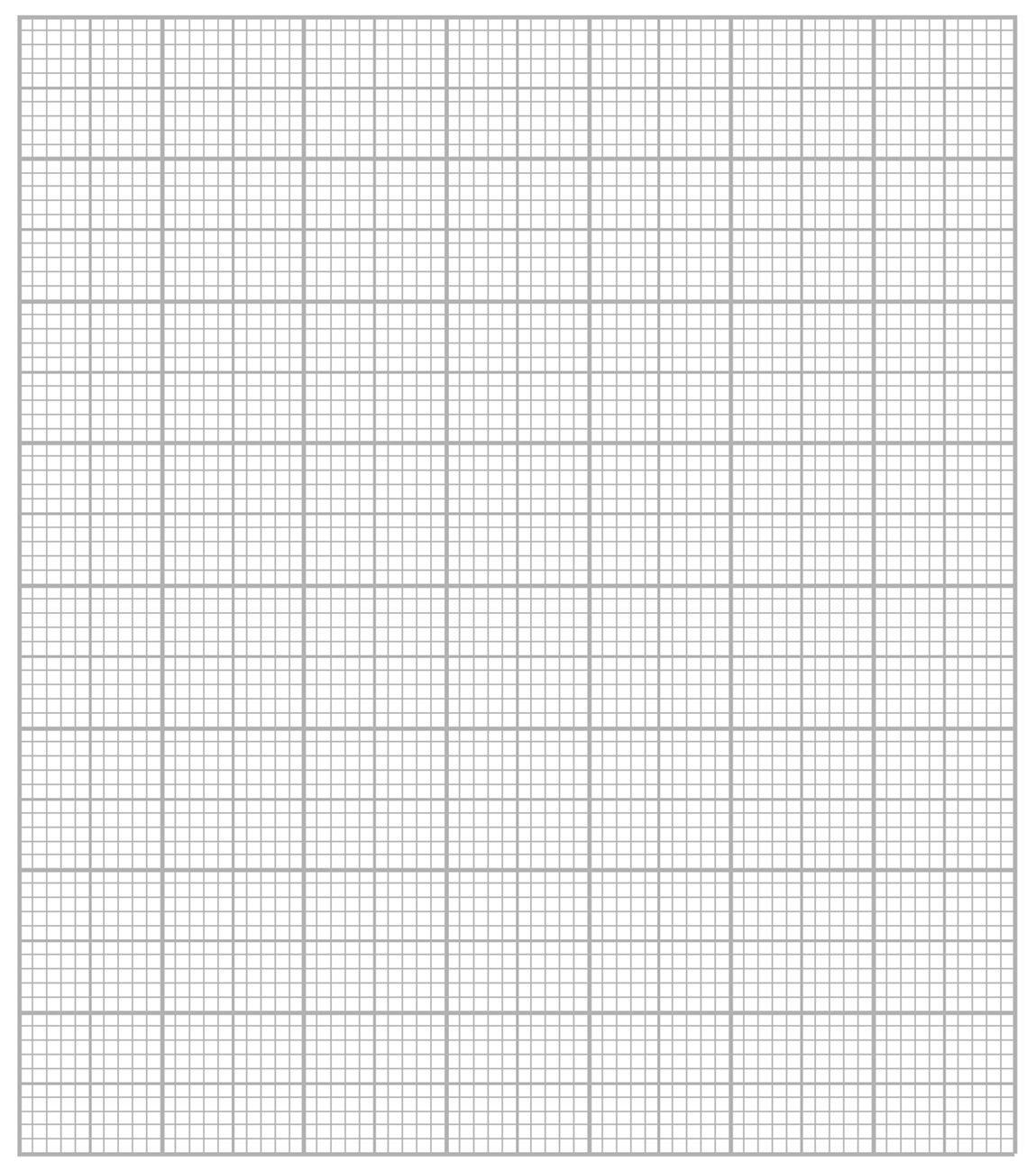

On the grid below, draw a frequency polygon for this information.

Nalini says that at least a quarter of these teachers sent more than emails.

Is Nalini correct?
You must explain your answer.

The frequency table gives information about the times it took some office workers to get to the office one day.

Draw a frequency polygon for this information.

Write down the modal class interval.

One of the office workers is chosen at random.

Work out the probability that this office worker took more than 40 minutes to get to the office.

The table shows information about the heights of children.

Find the class interval that contains the median.

Draw a frequency polygon for the information in the table.

The grouped frequency table gives information about the heights of students.

Write down the modal class interval.

This incorrect frequency polygon has been drawn for the information in the table.

Write down two things wrong with this incorrect frequency polygon.

Here are the heights in centimetres of 20 men.

Show this information in an ordered stem and leaf diagram.

Work out the percentage of these men with a height greater than 184 cm.

Chloe recorded the test marks of 20 students.

Show this information in an ordered stem and leaf diagram.

One of these students is going to be chosen at random.

Find the probability that this student has a test mark less than 28

The table shows information about the heights of plants.

Find the class interval that contains the median.

On the grid, draw a frequency polygon for the information in the table.

Sean has drawn a time series graph to show the numbers, in thousands, of visitors to a fun park.

Write down two things that are wrong or could be misleading with this graph.

The time series graph shows information about the percentages of the people in a village that used the village shop for the years between 1980 and 2010.

Describe the trend in the percentage of the people in the village who used the shop for this period.

i) Use the graph to predict the percentage of the people in the village likely to use the shop in the year 2020.

[1]

ii) Is your prediction reliable?
Explain your answer.

[1]

The table gives some information about the birds Paula sees in her garden one day.

Complete the accurate pie chart.

A music festival has taken place each year from 2011

The table shows the number of people who attended each year.

The festival organisers draw a time series graph to represent the data.
The first four years have been plotted.

Complete the graph.

Use the graph to estimate the number of people who will attend the festival in 2019.

The pie chart shows information about voters in an election.

3360 more women voted than men.

Work out the total number of voters.

The time students spent watching TV was recorded.

The table shows the average daily time per student each year from 2012 to 2019

A time series graph is drawn to represent the data.
The first four points have been plotted.

Complete the graph.

Use the graph to estimate the average daily time per student in 2020

.......................................... minutes

The graph shows the number of umbrellas sold in Ling’s shop for each quarter from quarter 1 of 2017 to quarter 3 of 2019.

The shop sold 32 umbrellas in quarter 4 of 2019.
Complete the graph.

Make one comment about the seasonal variation shown in this graph.

Make one comment about the annual variation shown in this graph.

Ling predicts that she will sell 50 umbrellas in quarter 1 of 2020.

What assumption has she made?

The table shows the average number of customers per day entering a shop.

Complete the time series graph below.

Make two different comments comparing the number of customers entering the shop in 2015 and 2016.

The pie charts give information about the ages, in years, of people living in two towns, Adley and Bridford.

The ratio of the number of people living in Adley to the number of people living in Bridford is given by the ratio of the areas of the pie charts.

What proportion of the total number of people living in these two towns live in Adley and are aged 0 -19?
Give your answer correct to 3 significant figures.

The pie chart shows information about people at a theme park.

There were 450 more women than men.

Work out the number of children.

Fran asks each of 40 students how many books they bought last year.

The chart below shows information about the number of books bought by each of the 40 students.

Work out the percentage of these students who bought 20 or more books.

 ...........%

Show that an estimate for the mean number of books bought is 9.5
You must show all your working.

The table shows information about the heights, in cm, of a group of Year 9 girls.

This stem and leaf diagram shows information about the heights, in cm, of a group of 15 Year 9 boys.

  Compare the distribution of the heights of the girls with the distribution of the heights of the boys.

The table shows the number of computers sold in Tom’s shop each quarter from 2015 to 2017.

Complete this graph using the information for 2017.

Tom adds the three results for quarter 1 and he adds the three results for quarter 4.
Tom says

The ratio of the total number of computers sold in quarter 1 compared to quarter 4 is   2 : 5.

Is he correct?
Show your reasoning.

Make two comments about Tom’s sales over the period 2015 to 2017.

Tom predicts that he will sell more than 60 computers in the 4th quarter of 2018.

What assumption has he made?

John wants to investigate whether men in the UK are better at estimating a time interval of 10 seconds than women in the UK. He decides to sample the population by asking his work colleagues to take the test.

The diagrams below summarise John’s results.

What information from the diagrams can be used to support each of these statements?

i) The older John’s colleagues are, the lower their estimate is.

[1]

ii) Males in the sample tend to underestimate the interval and females in the sample tend to overestimate the interval.

[2]

Comment on whether any conclusions can be drawn for the UK population from the results of this sample.
