Phloem Sieve Tube Elements (CIE AS Biology)

Revision Note

Test yourself
Cara Head

Author

Cara Head

Last updated

Phloem Sieve Tube Elements & Companion Cells: Structure & Function

  • The function of phloem tissue in a plant is to:
    • Transport organic compounds (assimilates), particularly sucrose, from the source (e.g. leaf) to the sink (e.g. roots). The transport of these compounds in phloem tissue can occur up and down the plant
  • The organic compounds are dissolved in water to form sap
  • Phloem is a complex tissue made up of various cell types
    • Its bulk is made up of sieve tube elements which are the main conducting cells and companion cells
    • Other cell types of phloem tissue also include parenchyma for storage and strengthening fibres
  • Mature phloem tissue contains living cells, unlike xylem tissue

Phloem Diagram

Phloem sieve tubes elements and companion cells 1, downloadable AS & A Level Biology revision notes

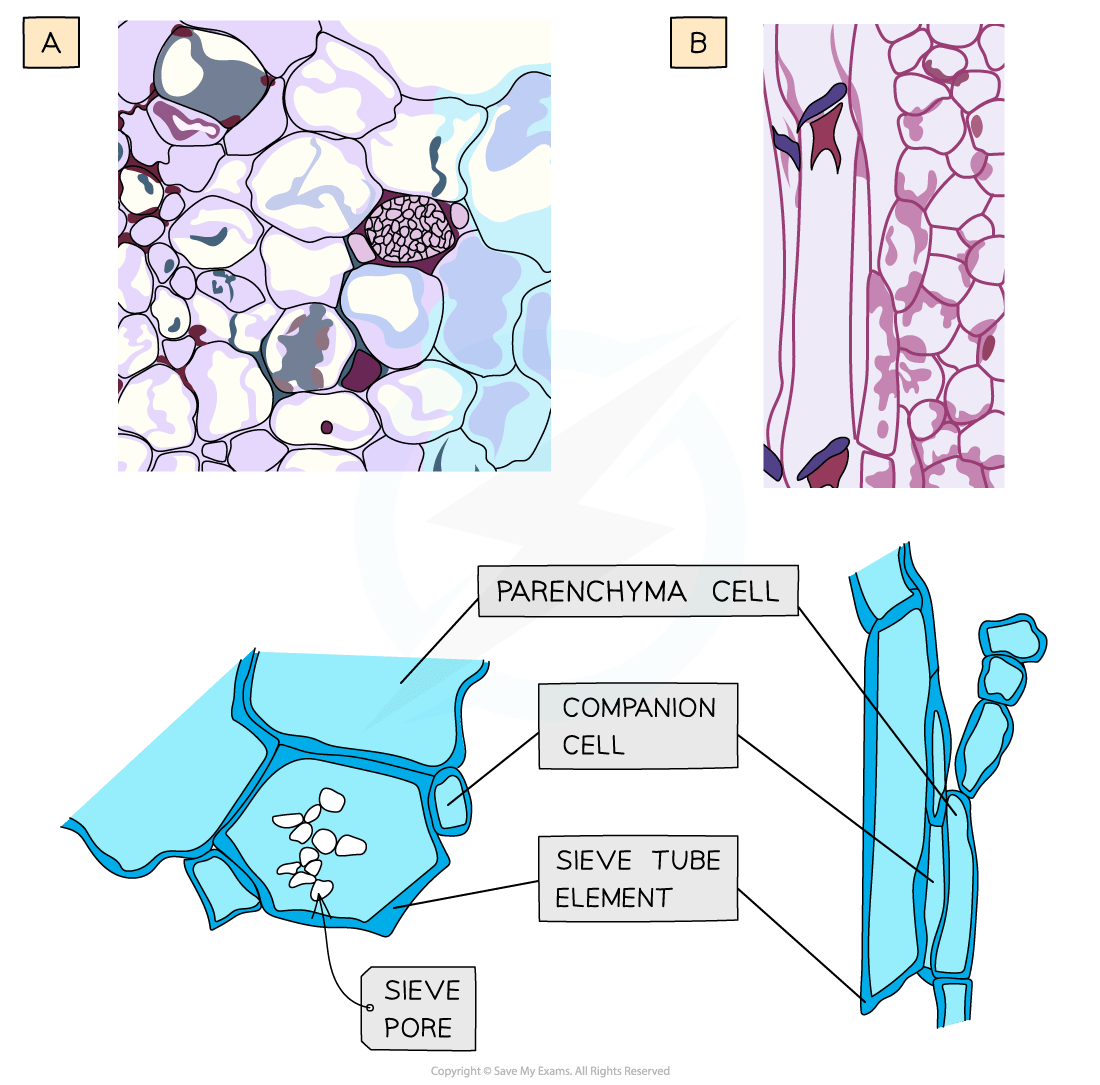

Structure of phloem tissue. (a) Microscope slide image and drawing of a sieve tube element and companion cell in transverse section (TS), (b) photomicrograph image and drawing of a sieve tube element and companion cell in longitudinal section (LS).

Phloem sieve tubes elements and companion cells 2, downloadable AS & A Level Biology revision notes

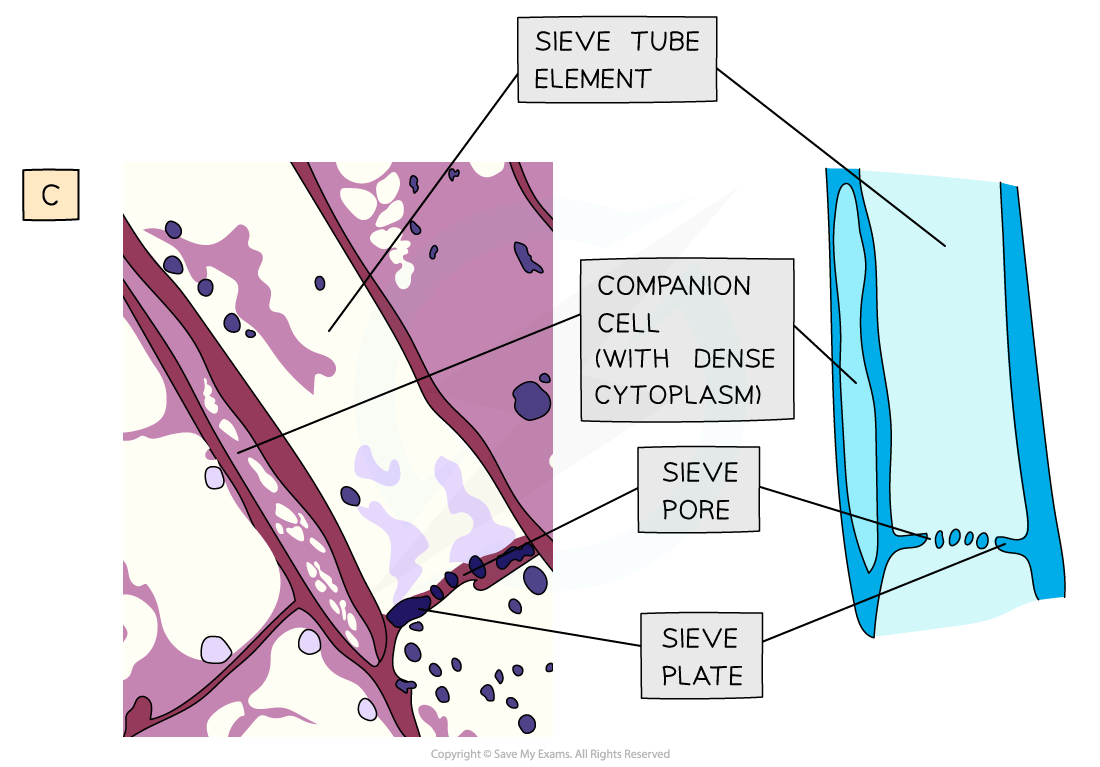

Structure of phloem tissue. (c) Transmission electron micrograph image and drawing of a sieve tube element and companion cell in transverse section (TS)

Sieve tube elements

  • Sieve tube elements line up end to end to form a continuous tube
  • They transport sugars and nutrients up and down the plants in sieve cells

Phloem sieve tube elements structure & function table

Structure Function
Sieve plates with sieve pores Allows for continuous movement of organic substances
Cellulose cell wall Strengthens the wall to withstand the hydrostatic pressures that move assimilates
No nucleus, ribosomes or vacuole in mature cells Maximises space for movement of assimilates
Thin cytoplasm Reduces friction to facilitate movement of assimilates

Companion cells

  • Each sieve tube element has a companion cell associated with it as companion cells control the metabolism of their associated sieve tube member
  • They also play a role in loading and unloading of sugars into the phloem

Phloem companion cells structure & function table

Structure Function
Nucleus and other organelles present Provides metabolic support to sieve tube elements and helps with loading and unloading of assimilates
Transport proteins in plasma membranes Moves assimilates into and out of sieve tube elements
Large numbers of mitochondria Provides ATP for the active transport of assimilates
Plasmodesmata (channels in cell wall) The link to sieve tube elements, allowing organic compounds to move from the companion cells into the sieve tube elements

Comparing Xylem and phloem

  • Xylem and phloem are similar in some ways but there are key differences that ensure they can carry out their separate functions in transport around the plant

Comparison of xylem & phloem tissue table

  Xylem Phloem
Living cells No (hollow cells) Yes (companion cells)
Substances transported Water and mineral ions Organic compounds/assimilates
Process of transportation Transpiration Active translocation
Direction of flow One way / upwards (roots to leaves) Two ways / up and down (source to sink)
Presence of end walls No Yes (sieve plates)
Cell wall material Lignin and cellulose Cellulose

Examiner Tip

Understand the difference between sieve tube elements and companion cells, and how they are different to xylem tissue. Remember that mature xylem tissue is dead, so there is no evidence of organelles, and they have lignified cell walls, whereas sieve tube elements have no lignin, do have sieve plates, and their companion cells contain nuclei and dense cytoplasm.
