Dose Response Curve (College Board AP® Environmental Science): Study Guide

What is the dose-response curve?

• Some substances, like drugs or toxins, have effects on living things that change depending on how much of them are present

• A dose-response curve shows this connection as a graph

• The curve shows the magnitude of the response to the drug (either therapeutic or toxic) by the subject

• Plotted on an x/y graph, where y represents the reaction and x represents the dosage

• The result is usually a sigmoidal curve with plateaus top and bottom

• The response is measured against concentration of the drug and not the amount of time that has passed

  • For example, a new drug meant to lower blood pressure is tested

  • By increasing the dose, the subjects blood pressure is lowered

  • This increase in dosage continues until the drug becomes ineffective and may even cause harm, a point referred to as the ceiling effect

  • The effective dose range is then found with the help of the dose-response curve

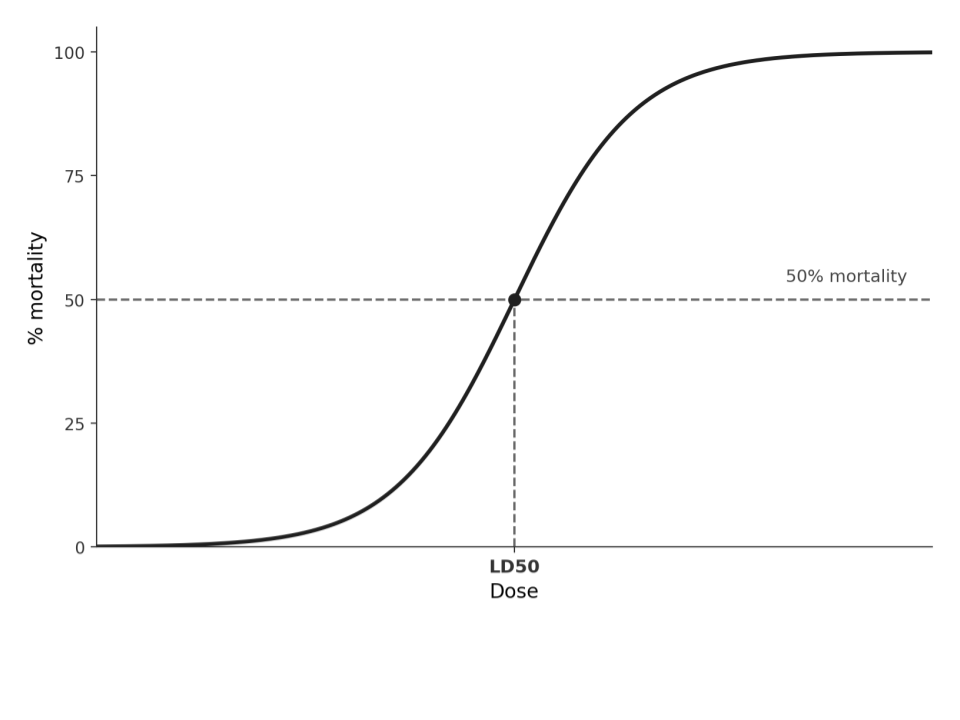

Awaiting Image

Typical representation of a dose-response curve

Key elements of a dose-response curve

• The key elements of a dose-response curve help to understand how doses affect biological systems

• These elements include:

  • The threshold is the lowest dose at which a reaction can be seen

    • Below this point, the substance might not show any effect

  • The slope shows how quickly the reaction changes when the dose is raised

    • A steep slope means that even small changes in dose can cause big changes

  • The plateau is the point of maximum response, where the level of response does not change even when the dose is increased

Legal context

• The dose-response curve is used to show how safe medicines, chemicals, and natural pollutants are

• These curves are used by regulatory groups like the FDA and EPA to set safety guidelines and limits on how much exposure is allowed

• The curve shows how specific levels can be harmful and supports product liability allegations of harm or negligence

• The dose-response graph also helps with:

  • Determining consumer product safety

  • Guiding industrial chemical regulations

  • Supporting occupational health policies
