Chromatography of Chloroplast Pigments (CIE A Level Biology)

• Chromatography is an experimental technique that is used to separate mixtures:
  • The mixture is dissolved in a fluid/solvent (called the mobile phase) and the dissolved mixture then passes through a static material (called the stationary phase)
  • Different components within the mixture travel through the material at different speeds
  • This causes the different components to separate
  • A retardation factor (R_f) can be calculated for each component of the mixture

R_f value = distance travelled by component ÷ distance travelled by solvent

• Two of the most common techniques for separating these photosynthetic pigments are:
  • Paper chromatography – the mixture of pigments is passed through paper (cellulose)
  • Thin layer chromatography – the mixture of pigments is passed through a thin layer of adsorbent (e.g. silica gel), through which the mixture travels faster and separates more distinctly

• Chromatography can be used to separate and identify chloroplast pigments that have been extracted from a leaf, as each pigment will have a unique R_f value
• The R_f value demonstrates how far a dissolved pigment travels through the stationary phase
  • A smaller R_f value indicates the pigment is less soluble and larger

• Although specific R_f values depend on the solvent that is being used, in general:
  • Carotenoids have the highest R_f values (usually close to 1)
  • Chlorophyll B has a much lower R_f value
  • Chlorophyll A has an R_f value somewhere between those of carotenoids and chlorophyll B
  • Small R_f values indicate the pigment is less soluble and larger

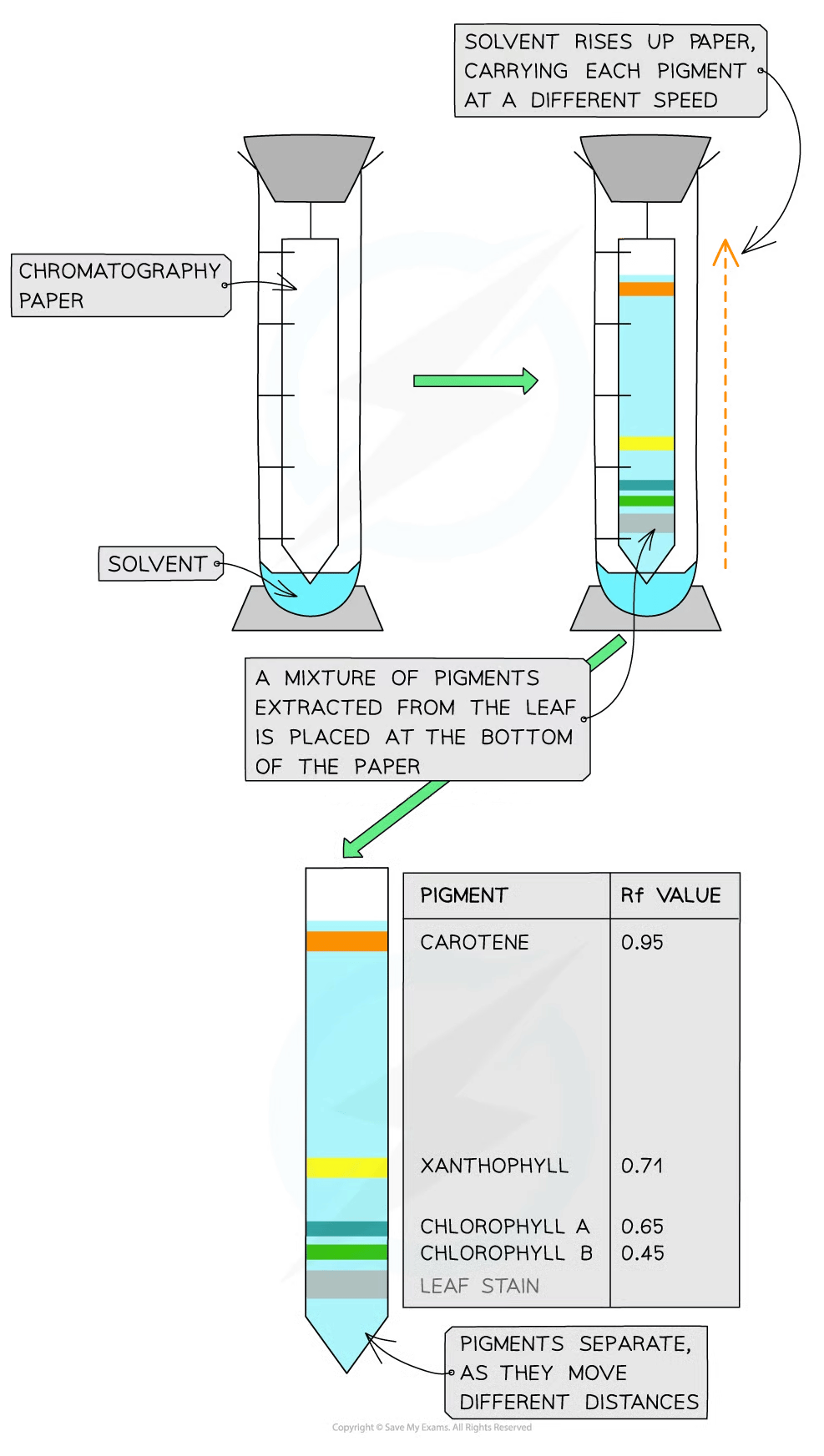

Paper Chromatography of Photosynthetic Pigments Diagram

Paper chromatography can be used to separate the photosynthetic pigments found within chloroplasts. Rf values can then be calculated for each pigment.
